MTC10/13/15

TYPE:

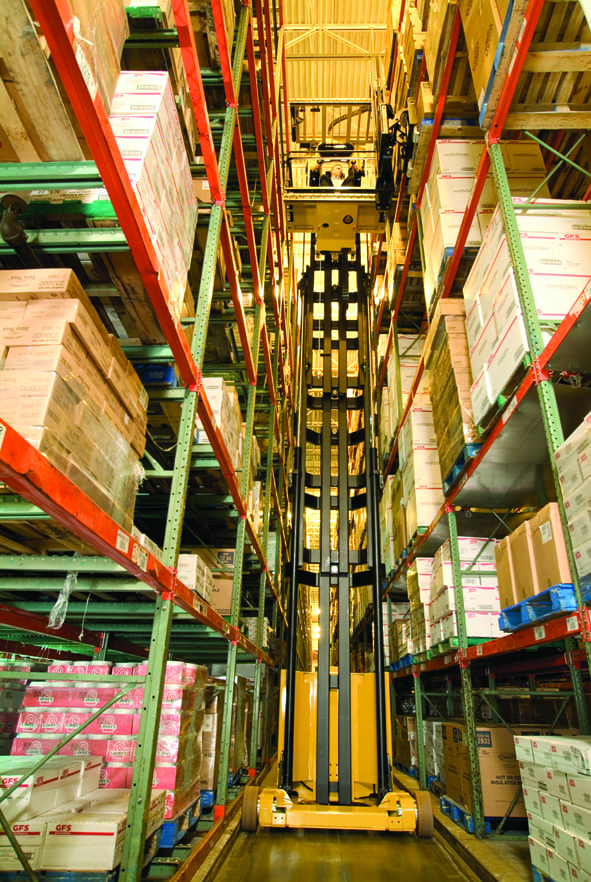

The perfect solution for applications requiring greater cube utilisation of the warehouse environment and for operating in very narrow aisles, the MTC series of trucks allows the warehouse to increase its storage density while still allowing optimum selectivity and the ability to quickly and safely move high volumes.

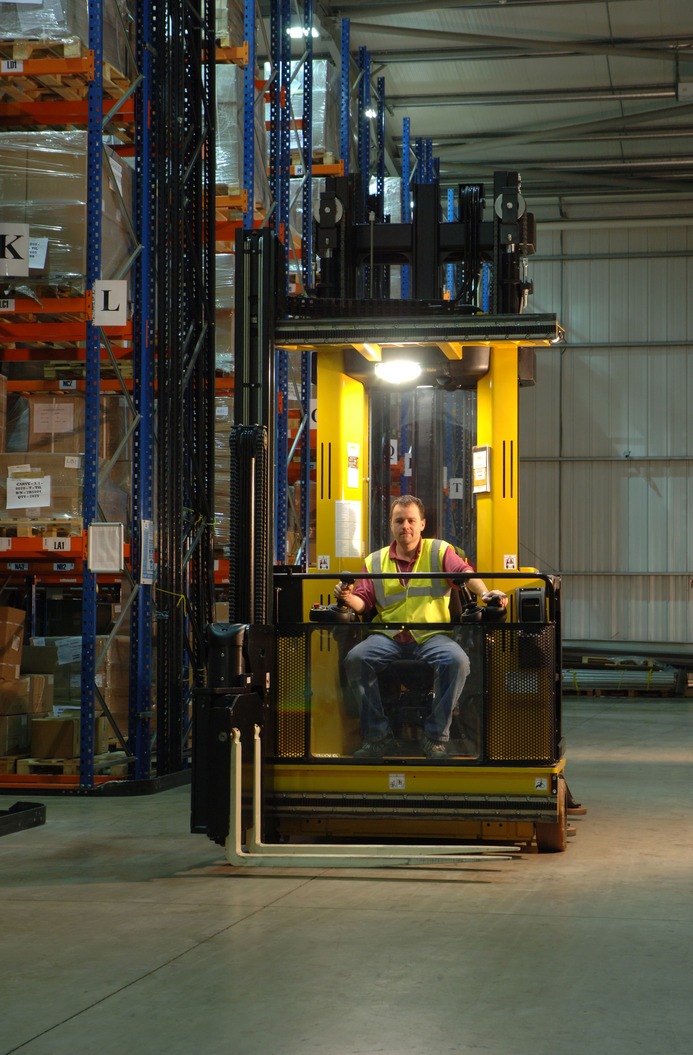

Capable of lifting to 17m, this series of VNA (Very Narrow Aisle) machines ensures that all usable space is utilised. Elevating the operator provides exceptional visibility of the pallet at all times and also provides the operator with the ability to perform piece picking when required.



Key features include:

- Patented Quad-Form mast design, coupled with rigid box-style frame construction ensure limited flex at height
- No tie-backs needed, reduces risk of racking damage when transferring aisle
- Excellent lift speeds, as standard, ensure full height can be reached in seconds
- Pantograph configuration allows smaller turrethead which reduces AST requirements
- This facilitates access to smaller aisles, or larger clearances and greater operating security
- A diverse set of pallet sizes can be easily managed within a single warehouse by one truck

SPECIFICATIONS
DriveElectric
Capacity1000-1500 kg
Lift height5200-15900mm
Battery capacity48/72/80V - 560-1085Ah
Operation on the fork sideNo
WorklightsYes
BluespotYes
